TrajWAM: An Efficient Trajectory-Guided World Action Model for Dynamic Robotic Manipulation

Geng, Haohan; Zhang, Sha; Sun, Weishuo; Ye, Guanting; Yu, Wenhao; Xie, Yuang; Zeng, Qicheng; Ye, Peng; Deng, Jiajun; Ji, Jianmin

TrajWAM: An Efficient Trajectory-Guided World Action Model for Dynamic Robotic Manipulation

Haohan Geng^1,†, Sha Zhang^2,†, Weishuo Sun^1,†, Guanting Ye³, Wenhao Yu¹, Yuang Xie¹, Qicheng Zeng⁴, Peng Ye², Jiajun Deng¹, Jianmin Ji^1,*

¹University of Science and Technology of China
²The Chinese University of Hong Kong
³University of Macau ⁴Huawei Technologies Co., Ltd.

^†Equal contribution ^*Corresponding author

Paper arXiv Code

Abstract

Dynamic object manipulation requires robots to anticipate target motion while replanning fast enough to avoid executing outdated actions. Existing approaches either rely on fast reactive control without an explicit future target state or encode anticipated motion only implicitly. World Action Models (WAMs) offer a promising alternative by coupling future visual prediction with action generation, but scene-level video objectives may underrepresent target dynamics that are critical for manipulation, while iterative video-action denoising introduces substantial latency. We present TrajWAM, a trajectory-guided world action model for efficient dynamic robotic manipulation. Our key insight is to explicitly ground future visual imagination in predicted target-object motion and use the resulting future representation to condition action generation, while preserving this anticipation pathway after acceleration. Given a short history of object masks, a history-conditioned motion predictor forecasts future masks encoding the target object’s trajectory. A lightweight Trajectory ControlNet then steers a pretrained video model toward trajectory-consistent futures. The resulting future representation conditions an action expert to predict executable action chunks. To enable one-step inference without breaking this interface, we introduce a decoupled distillation scheme that combines distribution matching for the video backbone, Trajectory ControlNet realignment, and action rollout distillation to support accurate one-step action prediction conditioned on the compressed future representation. Comprehensive evaluations in simulation and the real world show that TrajWAM achieves state-of-the-art performance on dynamic object manipulation tasks while enabling efficient one-step video-action inference.

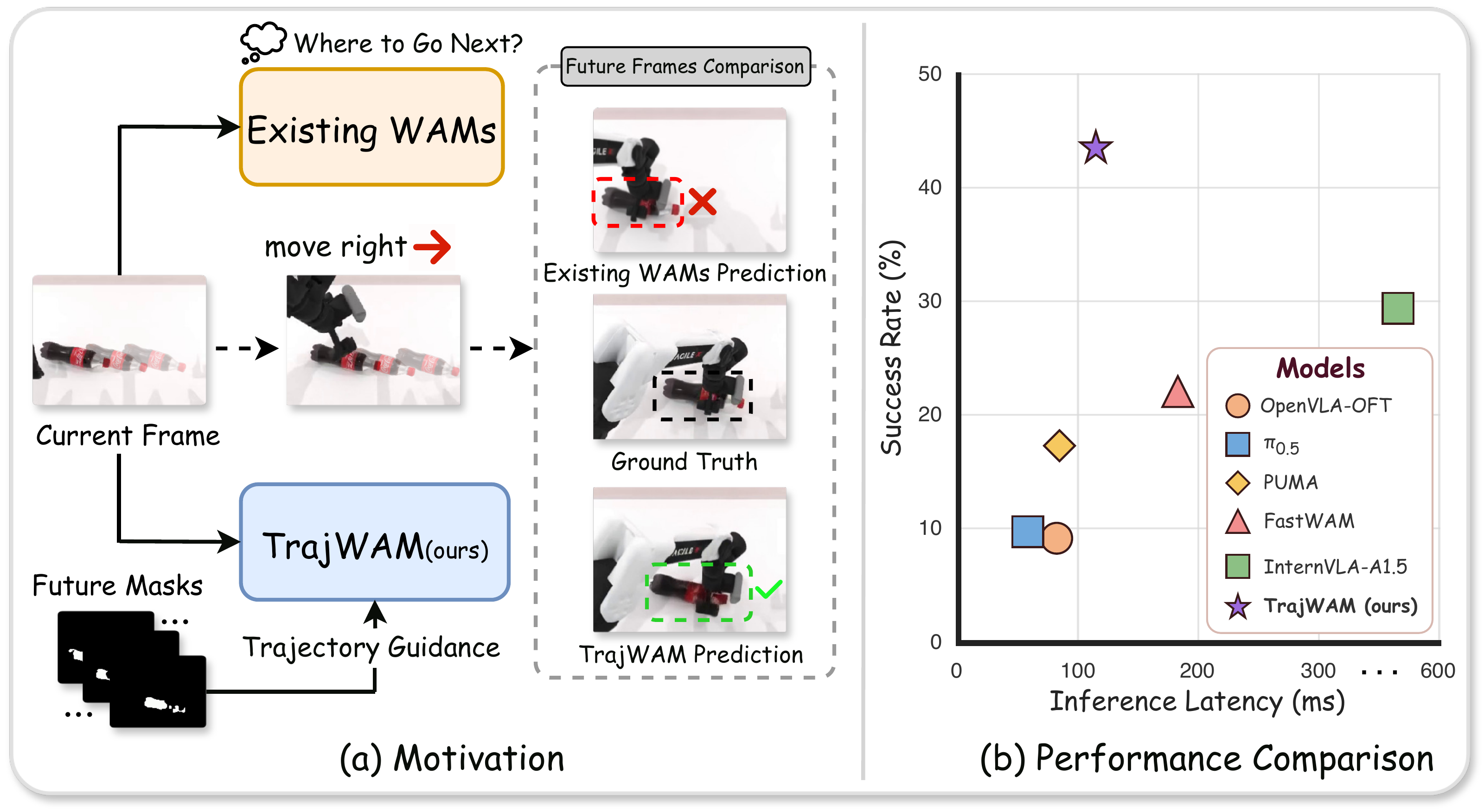

TrajWAM motivation and performance comparison

TrajWAM explicitly grounds future visual prediction in the target object's predicted trajectory. A lightweight Trajectory ControlNet guides a pretrained video model, and an action expert uses the resulting future representation to predict robot actions. Decoupled distillation enables one-step video-action inference.

Method

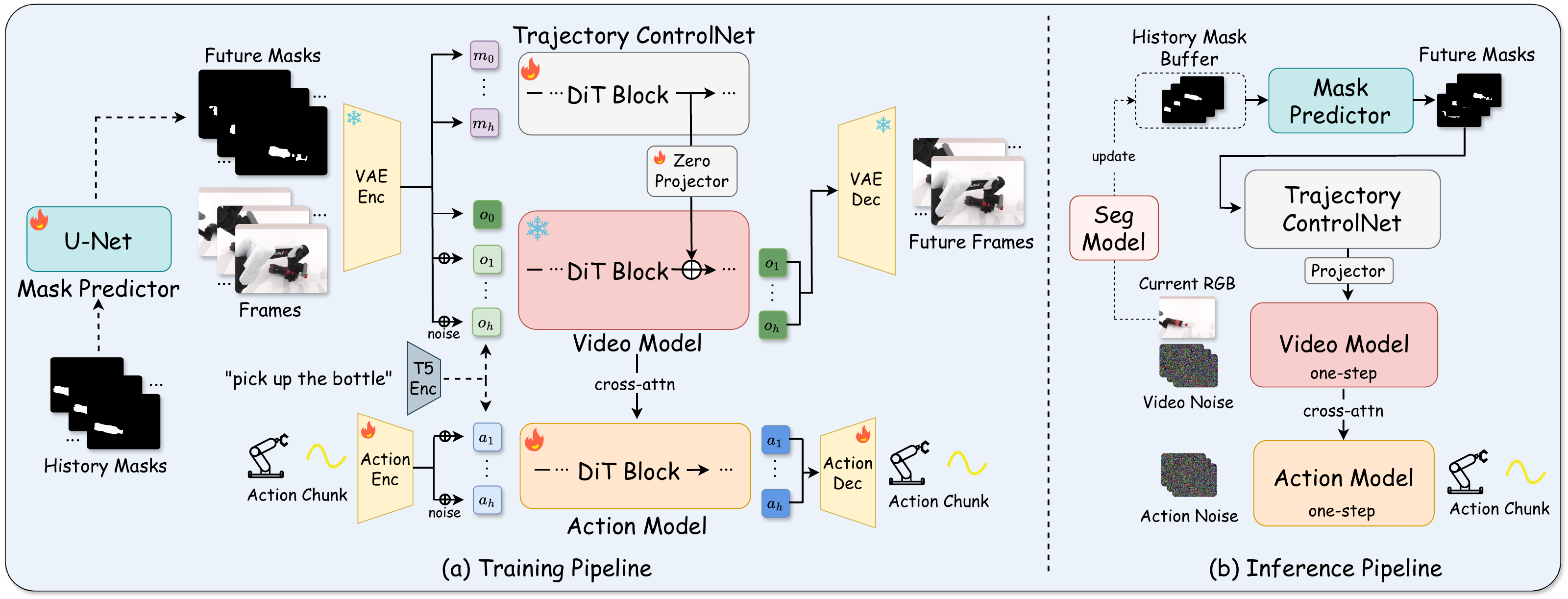

TrajWAM training and inference pipelines

Given a short history of object masks, a history-conditioned motion predictor forecasts future masks encoding the target object's trajectory. Trajectory ControlNet injects this trajectory into a pretrained video model, steering its predictions toward trajectory-consistent futures. An action expert conditions on the resulting visual representation to generate executable action chunks.

One-Step Deployment via Decoupled Distillation

Iterative video and action sampling introduces latency that is costly for dynamic manipulation. Compressing both branches also changes the future representation read by the action model. We therefore distill TrajWAM in three stages to preserve trajectory guidance and accurate future-conditioned actions under one-step inference.

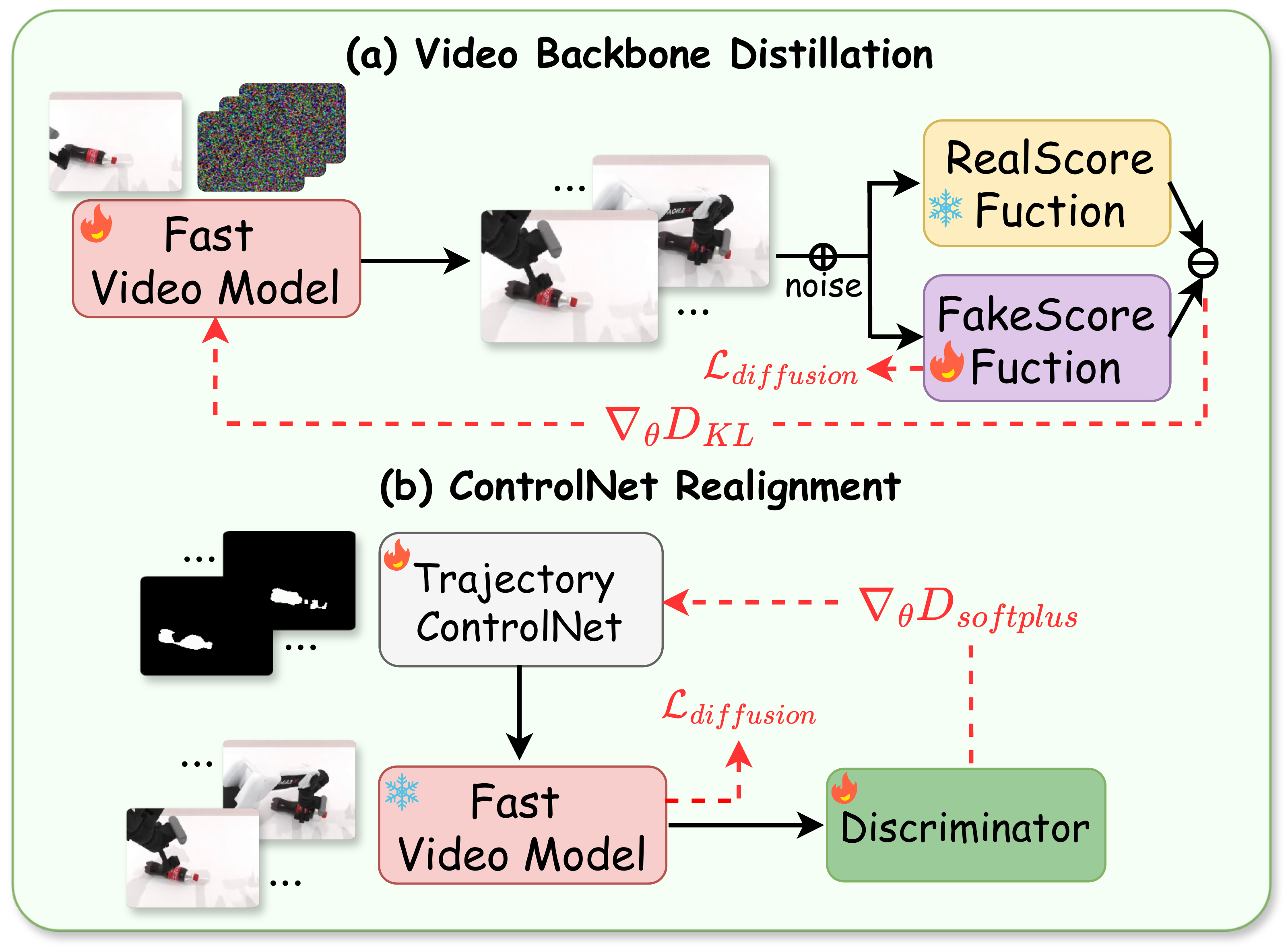

Video backbone distribution matching distillation and Trajectory ControlNet realignment

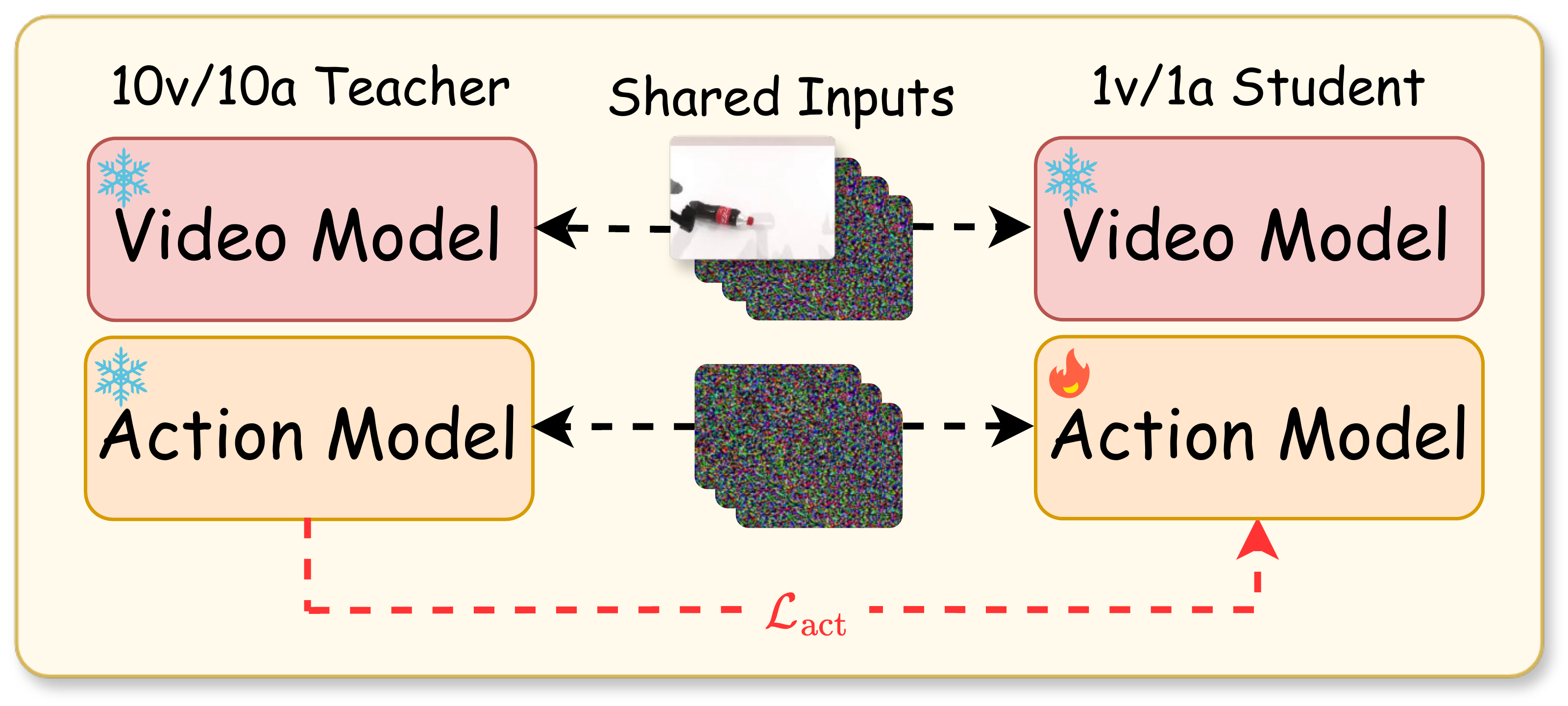

Action rollout distillation from a 10-step video and action teacher to a one-step student with shared inputs and initial noises

Video Backbone Distillation. We first distill the video generator independently of the trajectory and action branches using distribution matching distillation (DMD). A frozen real-score model and a trainable fake-score model guide the student toward the teacher's future-video distribution.

Trajectory ControlNet Realignment. The distilled backbone changes the noise schedule and intermediate features that the trajectory adapter was trained to use. Keeping the fast video generator frozen, we realign the Trajectory ControlNet with latent reconstruction and diffusion-discriminator objectives so that predicted object trajectories remain effective.

Action Rollout Distillation. With the one-step video generator and trajectory adapter fixed, we train the fast action branch to match the complete action chunk produced by the multi-step teacher. Both models receive the same observations, language, trajectory conditions, and initial video and action noises, allowing the student to adapt to its compressed future representation while retaining the teacher's action predictions.

Results

Simulation on DOMINO

Across 35 dynamic manipulation tasks, TrajWAM achieves the highest success rate (43.54%) and manipulation score (54.07). Compared with InternVLA-A1.5, it improves success rate by 14.24 percentage points and manipulation score by 11.57, while reducing inference latency from 552.2 ms to 108.5 ms.

Table I. Comparison with SOTA methods on DOMINO.
Method	SR (%) ↑	MS ↑	Latency (ms)
OpenVLA	1.54	6.10	173.6
π₀-FAST	3.54	20.87	119.9
VLA-Adapter	4.40	24.31	83.6
RDT-1B	5.34	17.71	246.3
InternVLA-M1	5.40	27.57	183.8
Isaac-GR00T	6.10	28.60	76.4
π₀	8.17	23.96	52.9
OpenVLA-OFT	9.06	24.06	83.1
π_0.5	9.63	26.17	59.1
PUMA	17.20	34.97	85.4
Fast-WAM	21.97	37.27	183.7
InternVLA-A1.5	29.30	42.50	552.2
TrajWAM (ours)	43.54	54.07	108.5

SR is task success rate; MS is DOMINO's continuous manipulation score. Latency is per inference.

Real-world dynamic grasping

TrajWAM succeeds in 187/240 conveyor-belt trials (77.9%) and 169/240 rotating-disc trials (70.4%). Each object-speed combination has 20 trials, and a trial succeeds only when the object is grasped and lifted.

Table II. Real-world task success rates.
Method	Low speed				Medium speed				High speed				Overall
Method	Banana	Bottle	Tape	Plush toy	Banana	Bottle	Tape	Plush toy	Banana	Bottle	Tape	Plush toy	Succ.	SR (%)
Conveyor belt
π_0.5	15/20	18/20	13/20	19/20	9/20	10/20	8/20	16/20	3/20	0/20	5/20	14/20	130/240	54.2
Fast-WAM	14/20	6/20	11/20	18/20	5/20	2/20	3/20	8/20	1/20	0/20	1/20	2/20	71/240	29.6
TrajWAM (ours)	18/20	16/20	15/20	20/20	16/20	13/20	18/20	19/20	11/20	7/20	16/20	18/20	187/240	77.9
Rotating disc
π_0.5	12/20	5/20	8/20	17/20	6/20	4/20	11/20	15/20	5/20	0/20	10/20	13/20	106/240	44.2
Fast-WAM	4/20	1/20	6/20	16/20	2/20	2/20	9/20	14/20	1/20	0/20	2/20	10/20	67/240	27.9
TrajWAM (ours)	14/20	11/20	16/20	18/20	12/20	13/20	12/20	17/20	12/20	10/20	15/20	19/20	169/240	70.4

Cells show successful grasps out of 20 trials. Across both tasks, TrajWAM succeeds in 356/480 trials (74.2%), compared with 49.2% for π_0.5 and 28.8% for Fast-WAM.

Under high-speed motion, TrajWAM achieves success rates of 65.0% on conveyor-belt grasping and 70.0% on rotating-disc grasping, exceeding π_0.5 by 37.5 and 35.0 percentage points, respectively.

Qualitative comparison

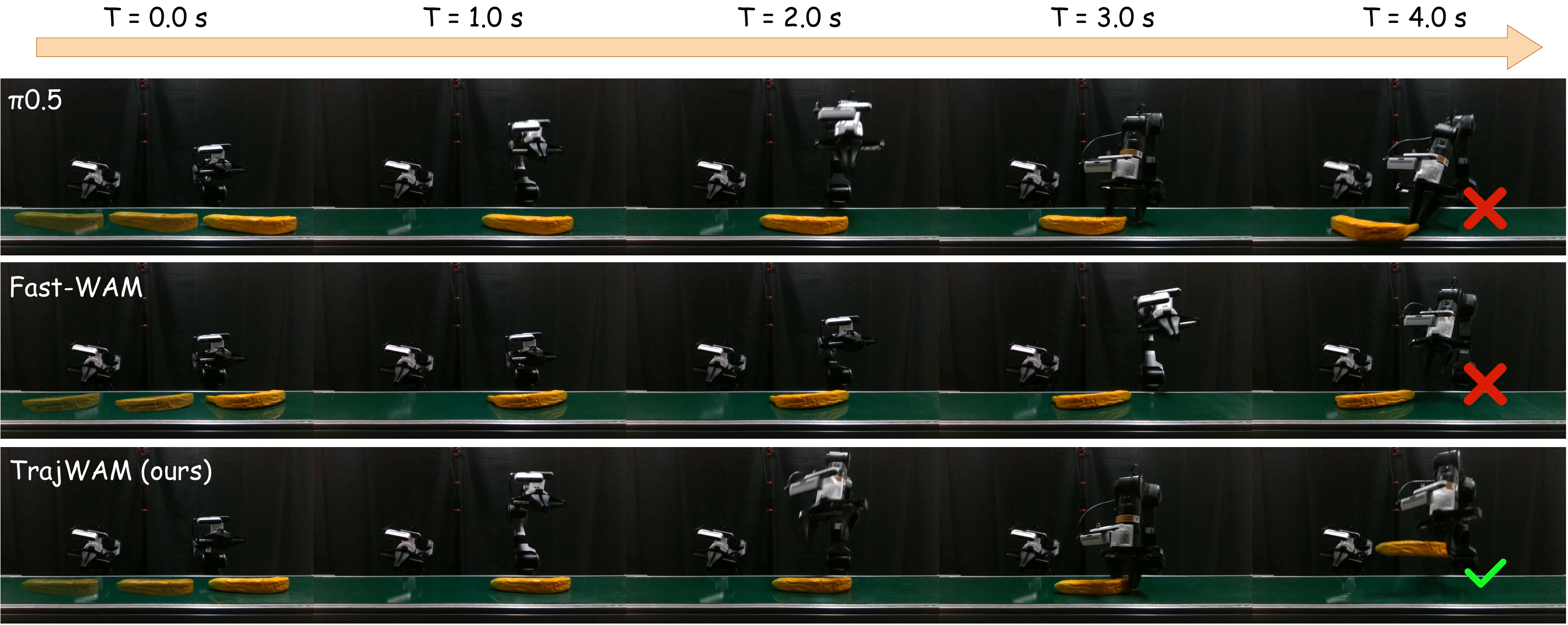

Real-world conveyor grasping comparison between pi 0.5, Fast-WAM, and TrajWAM

Real-world conveyor-belt grasping comparison. TrajWAM anticipates the target object's motion and successfully grasps it, while the baseline methods fail in this sequence.
